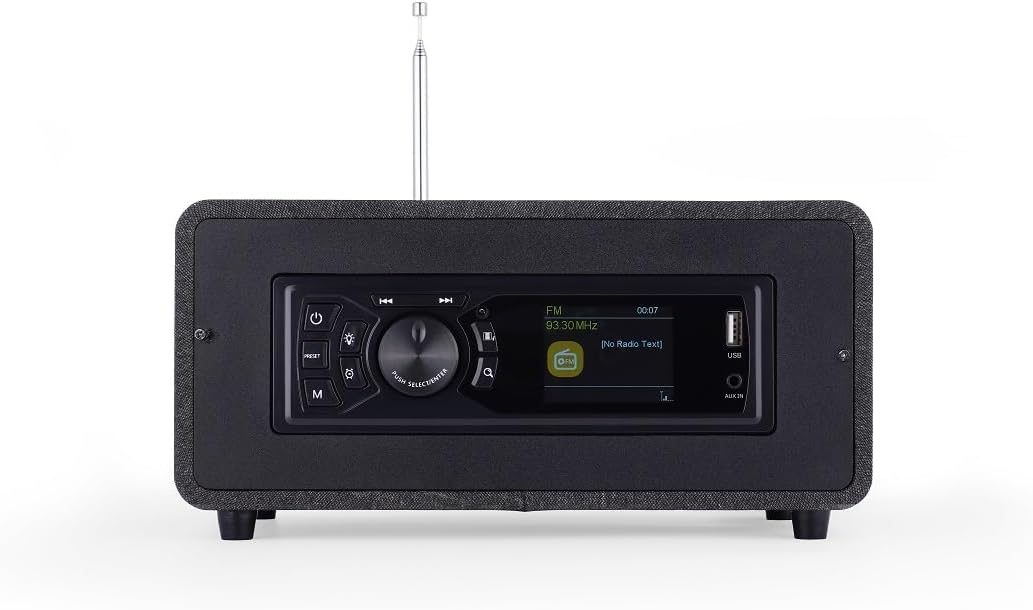

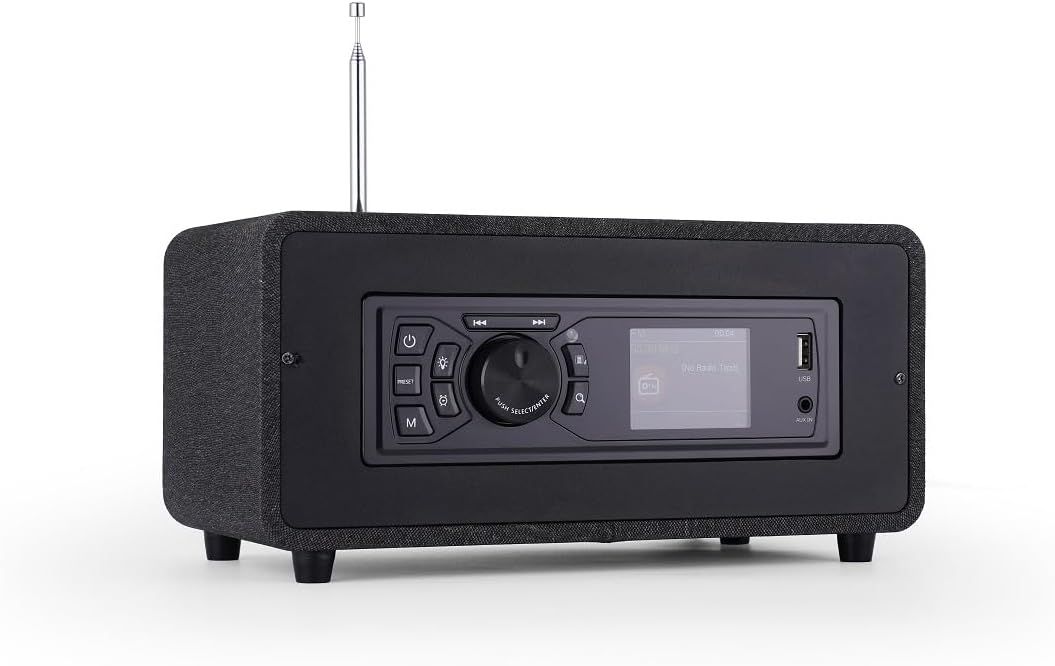

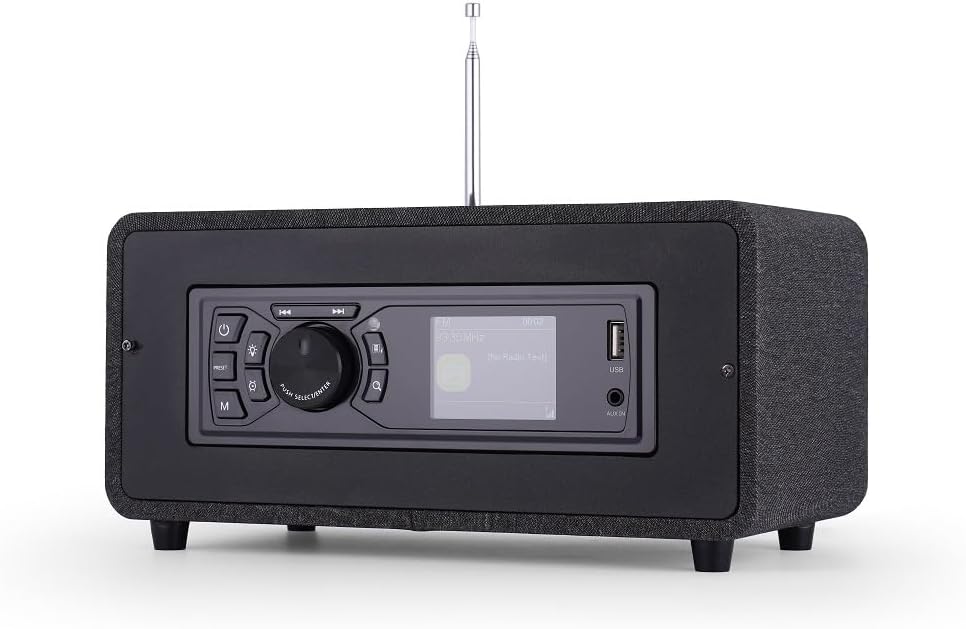

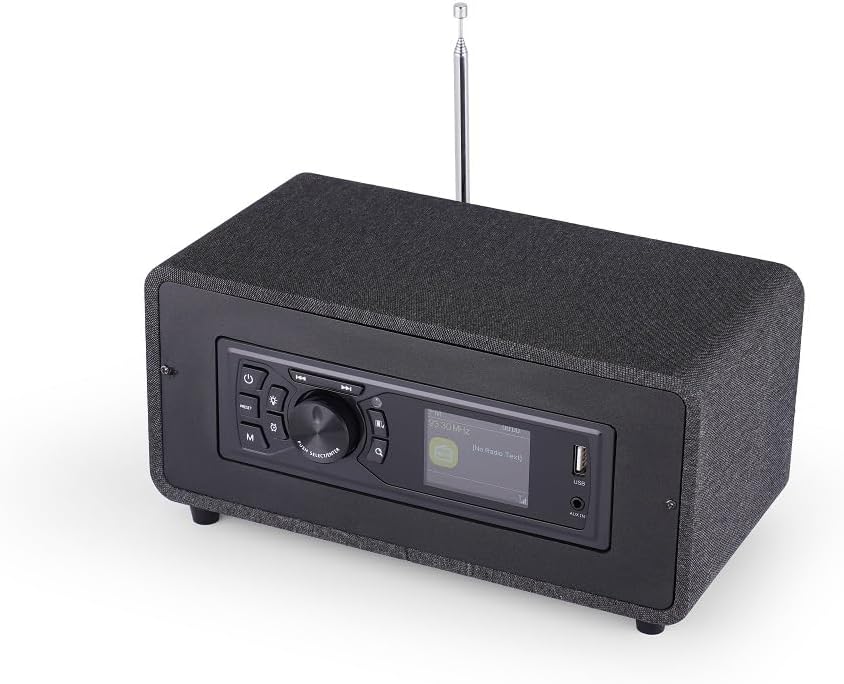

AOVOTO BEA103-028 FM/DAB+ Radio/Bluetooth/USB/AUX IN wooden color radio with remote control & double alarm mode
AOVOTO BEA103-028 FM/DAB+ Radio/Bluetooth/USB/AUX IN wooden color radio with remote control & double alarm mode
Base Specifications
1.Model NO.: BEA103 - 028
2.Brand: AOVOTO
3.The material of shell: Woods
4.Product Colour: black
5.Product Dimension(LWT):approx. 260 mm x116mm x130mm
6.Product Weight (kg):approx. 2 kg
Technical Specifications
1.POWER SUPPLY: Input: AC 100‐240V~ 50Hz/60Hz,max.0.75A
2.Output: DC 5V/max. 3.5A
3.USB DC Power Supply(optional): 5V/3A (min.)
4.FM FREQUENCY: 87.5‐108MHz
5.DAB FREQUENCY: 174MHz‐240MHz
6.BLUETOOTH (5.0): Compliant to Bluetooth 5.0
7.Bluetooth FREQUENCY: 2402MHz to 2480MHz
8.Max RF power: ‐1.22dBm (0.76W)
9.USB Port (Front): Mp3 music format

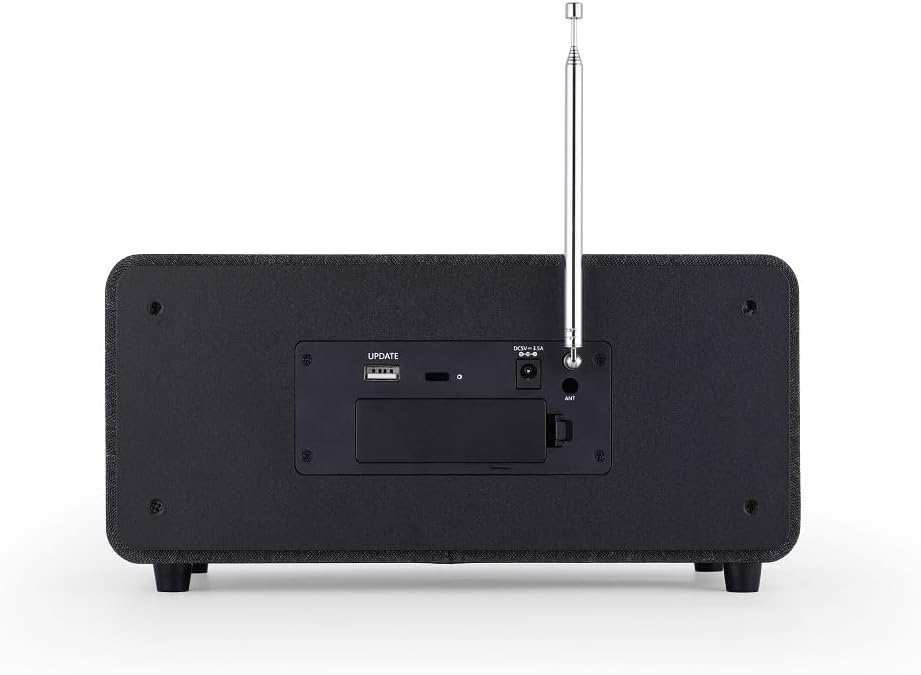

10.USB Port (back): Firmware Update
11.AUX IN: 3.5mm Jack
12.Load Impedance: 4Ω
13.Output Power: 5W x 2
14.Operating Temperature: 0°C to 60°C
15.Operating humility(Relative): 20% to 75%
16.Storage Temprature: ‐10°C to 60°C
17.Operating humility(Relative): 0% to 75%
Content in package
1 x BEA 103 -028 item
1 x AC/DC Power Supply
1 x Operation Manual
1 x Installation Manual
1 x Kraft box for packing
About This Item
*Large TFT - Display for easy control and clear information display, with up to sixlines of text plus
*FM with RDS (Radio Data System), support bluetooth speaker function
*DAB/FM can store 10 channels separately
*Aux in for external music sources such as MP3 players
*Speaker output, USB Port (Front) : Mp3 music format
Preparation For Use
Unplug the product when not in use for a long period of time.
If the power cable is damaged, it must be replaced by the manufacturer or qualified service personnel to avoid danger.
Please Note: This item is suitable for whom are over 12 years old. The stuffing in the packaging is not allowed to be used as toys for children or pets.
