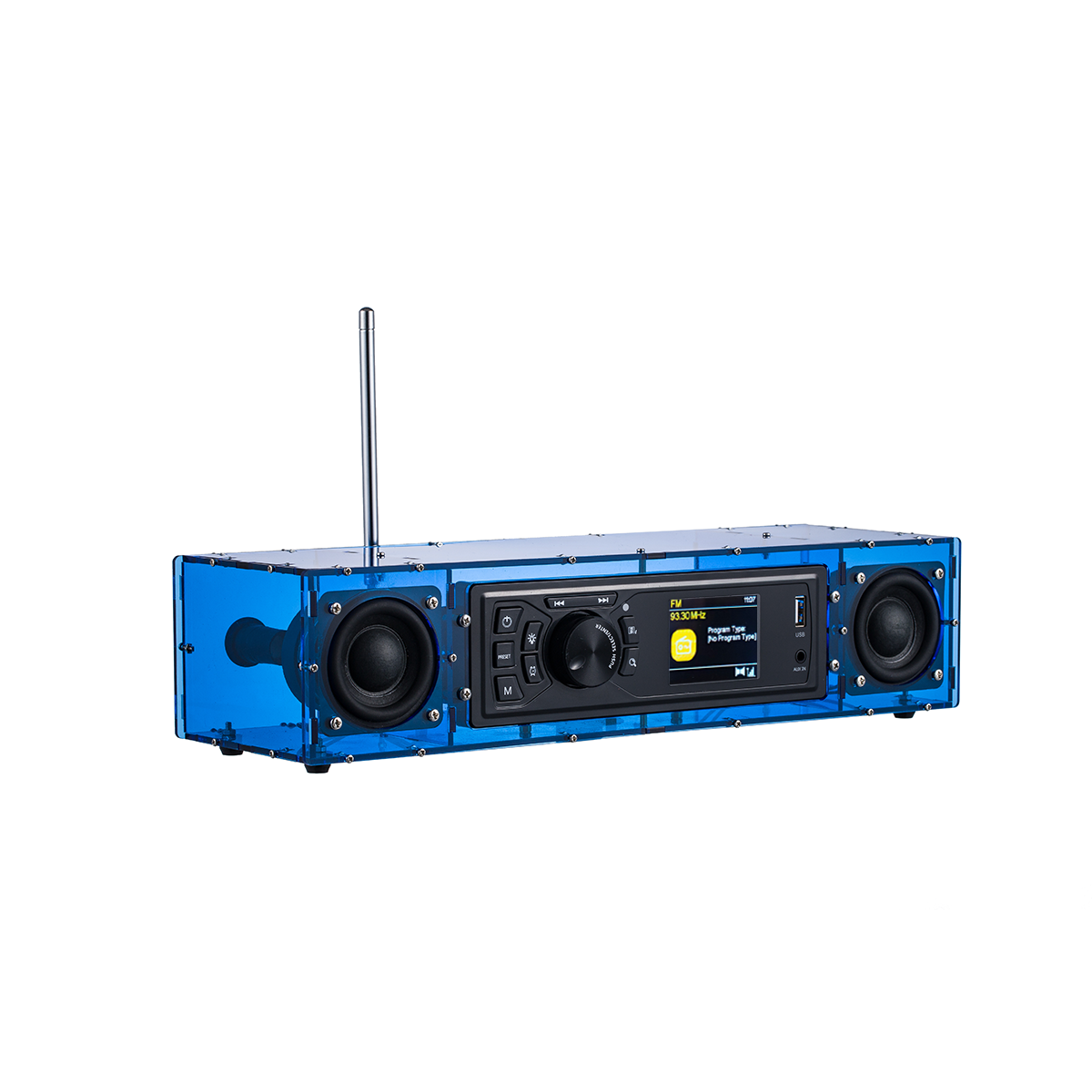

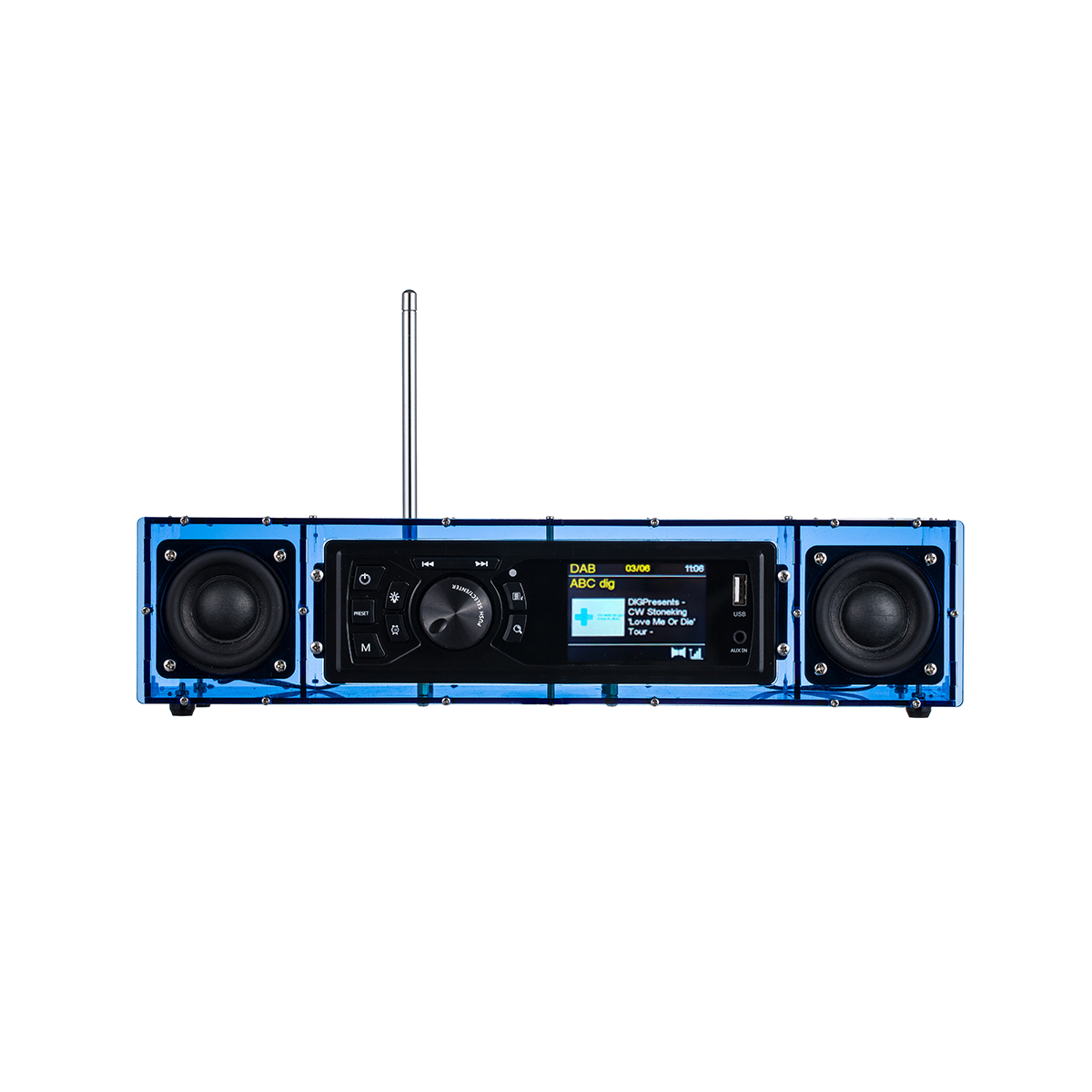

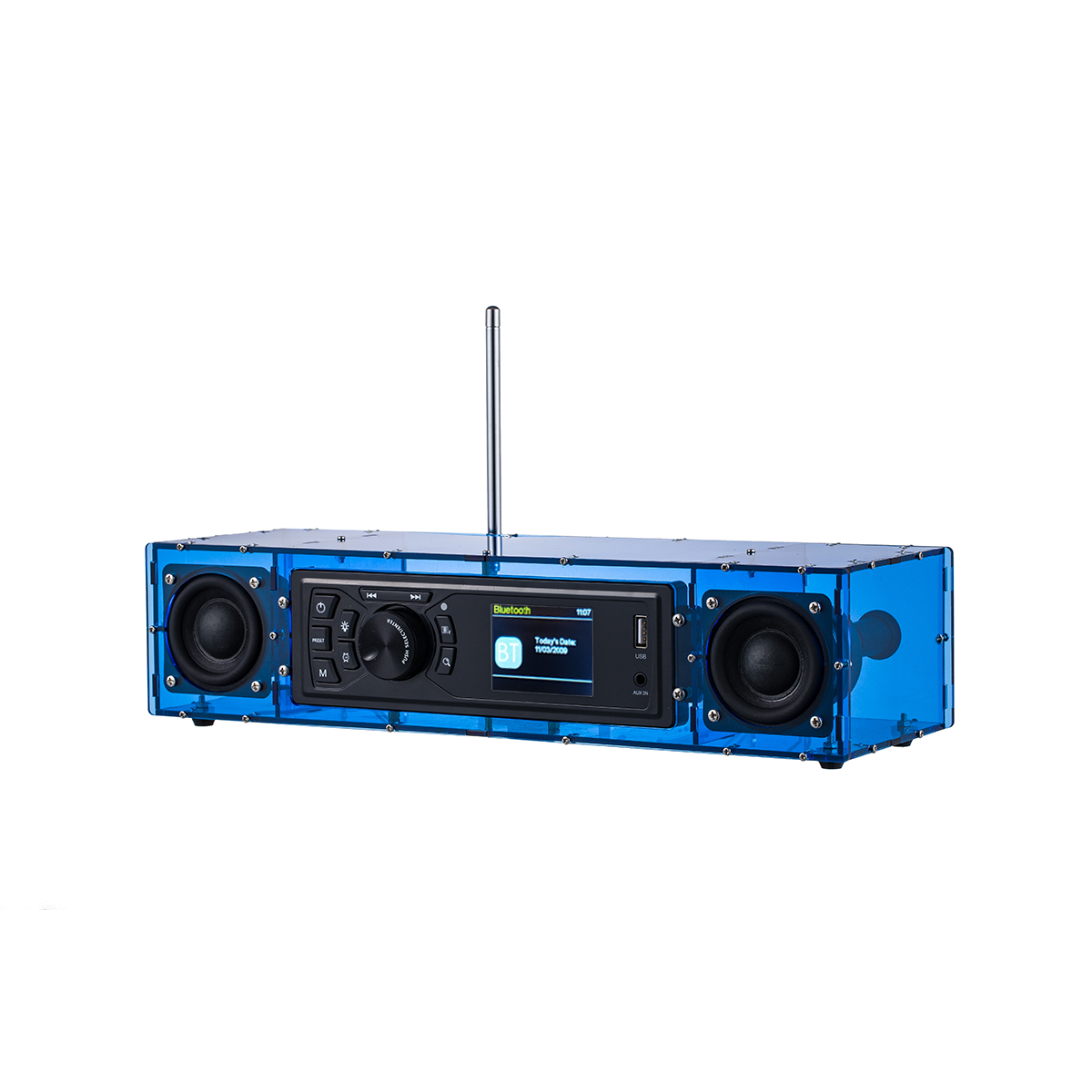

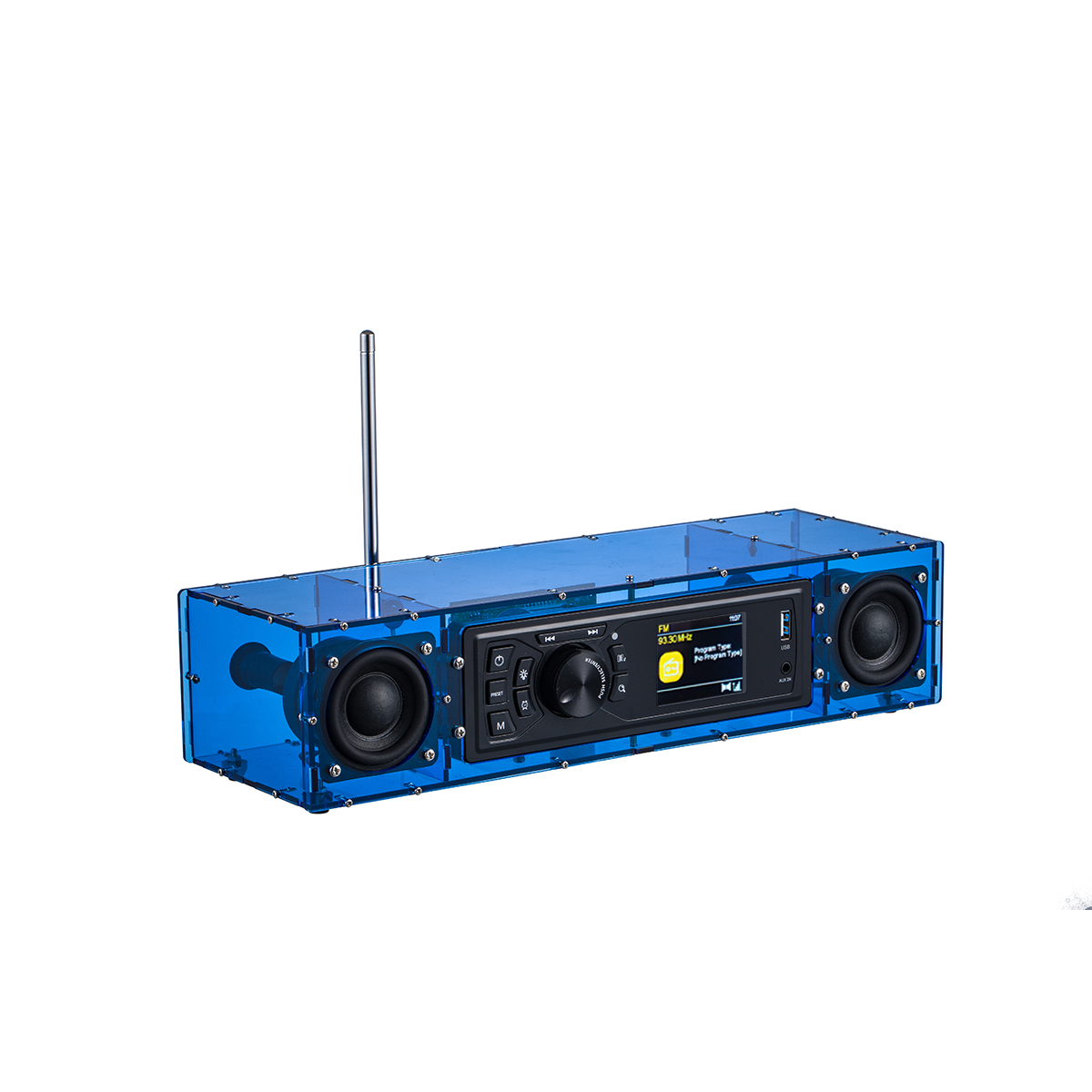

AOVOTO ALK103 FM/DAB radio Do It Yourself (DIY) kits with acrylic shell, DIY DAB+/FM Sets with alarm mode & LCD Display & stero sound box (blue)

AOVOTO ALK103 FM/DAB radio Do It Yourself (DIY) kits with acrylic shell, DIY DAB+/FM Sets with alarm mode & LCD Display & stero sound box (blue)

Regular price £38.60 GBP
Regular price Sale price £38.60 GBP
Sale Sold out
Tax included.
尺寸
颜色

Base Specifications
1.Model NO.:ALK103
2.Brand: AOVOTO
3.The material of shell: acrylic
4.Product Colour:blue
5.Product Dimension(L*W*T):approx.344.5mm*111.2mm*79.6mm
6.Product Weight (kg):approx.1.05kg

Technical Specifications
1.POWER SUPPLY: Input: AC 100‐240V~ 50Hz/60Hz,max.0.75A
2.Output: DC 5V/max. 3.5A
3.USB DC Power Supply(optional): 5V/3A (min.)
4.FM FREQUENCY: 87.5‐108MHz
5.DAB FREQUENCY: 174MHz‐240MHz
6.BLUETOOTH (5.0): Compliant to Bluetooth 5.0
7.Bluetooth FREQUENCY: 2402MHz to 2480MHz
8.Max RF power: ‐1.22dBm (0.76W)
9.USB Port (Front): Mp3 music format
10.USB Port (back): Firmware Update
11.AUX IN: 3.5mm Jack
12.Load Impedance: 4Ω
13.Output Power: 5W x 2
14.Operating Temperature: 0°C to 60°C
15.Operating humility(Relative): 20% to 75%
16.Storage Temprature:  ‐10°C to 60°C
17.Operating humility(Relative): 0% to 75%

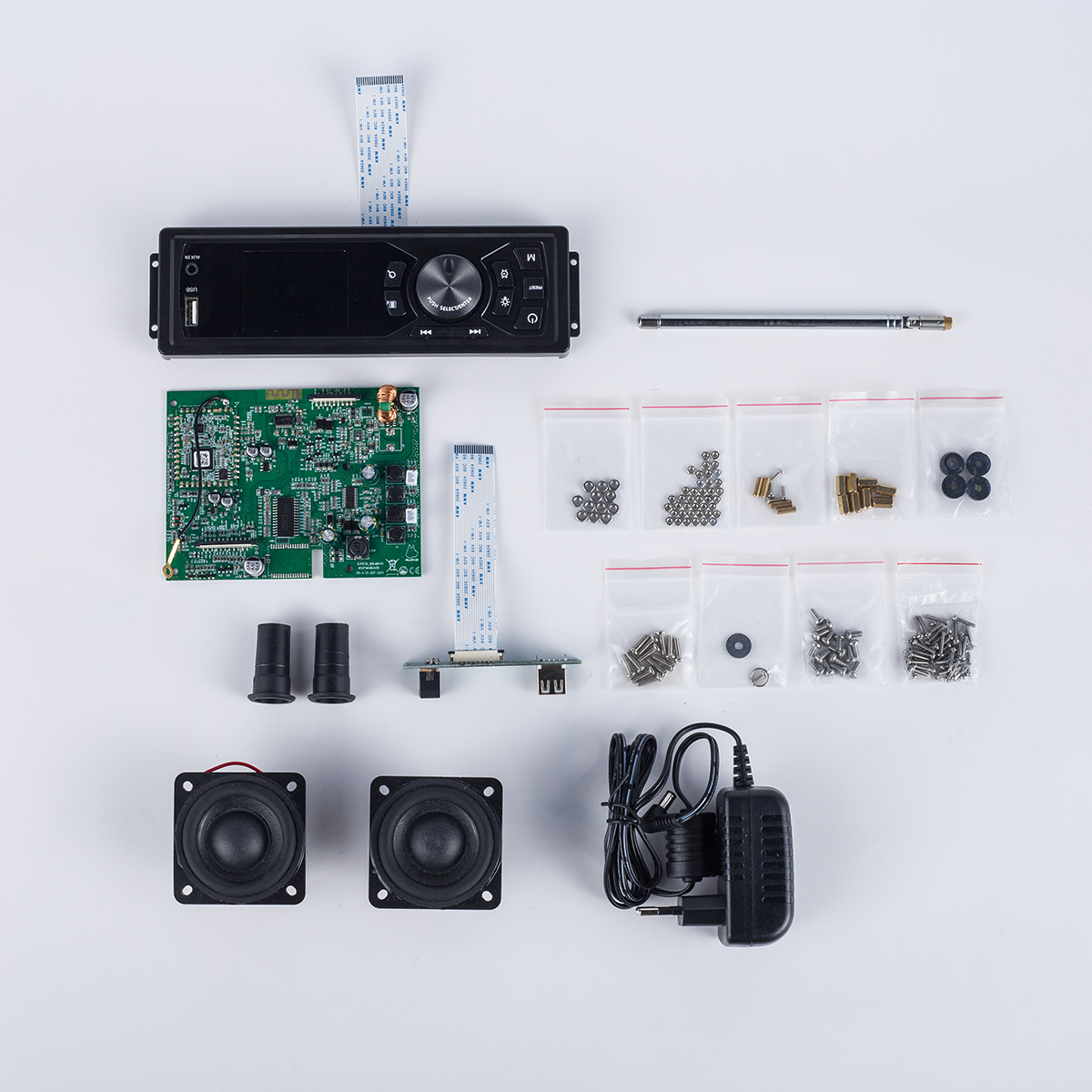

Content in package
1 x set: FM/DAB+ Bluetooth Radio PCBA (Including:mainboard, key board+display and power socket board)
1 x set: Plastic panel

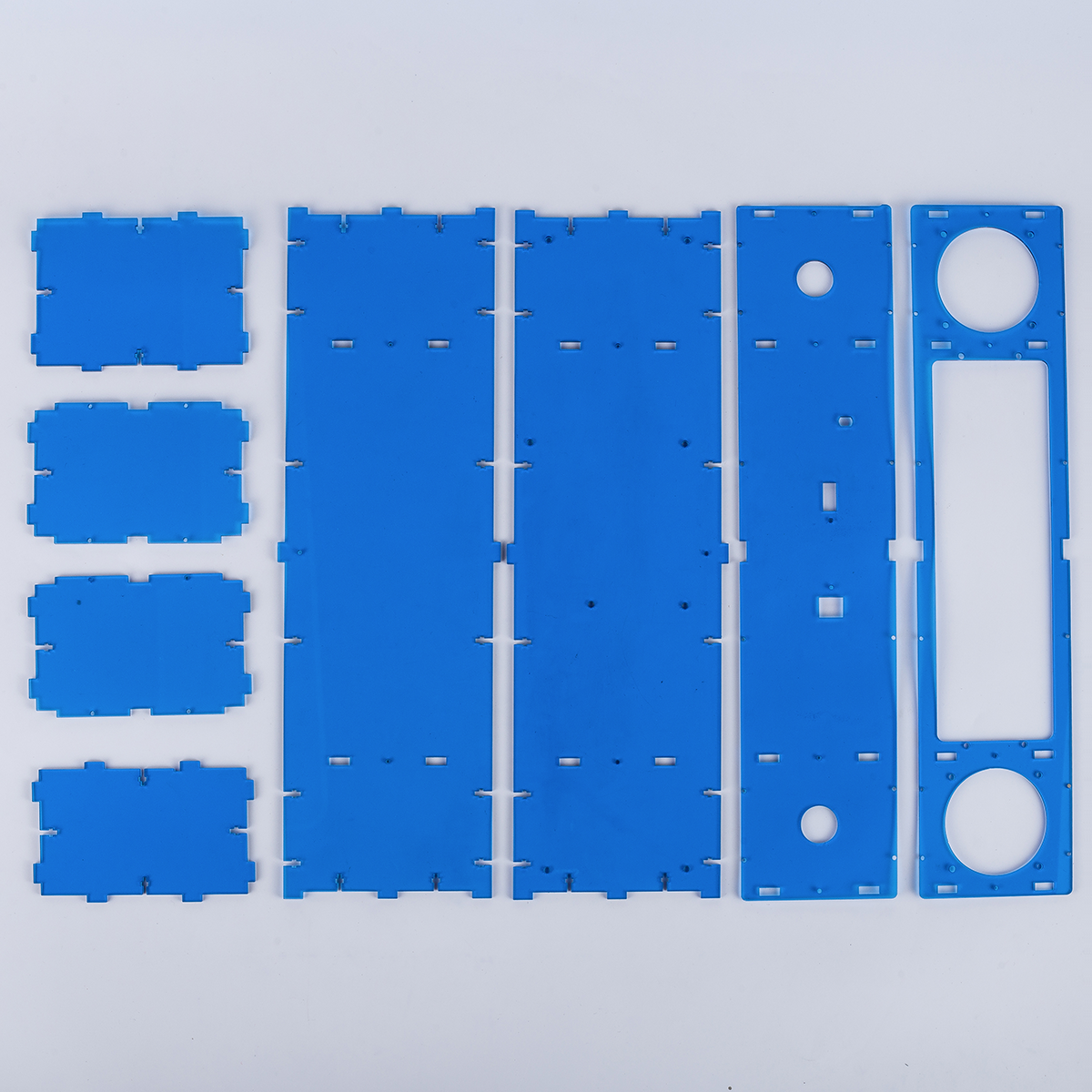

1 x set: Acrylic (including: front panel, rear panel, upper panel, bottom panel, left middle panel, right
middle panel, left panel, right panel)
1 x set: Copper pillar(M3*9mm、M2*10mm)
1 x set: Screw (Including:M2*10mm、M2*6mm、M2.5*6mm、M3*10mm、M3*6mm)
1 x set: Screw Nut (Including:M2、M3)
1 x set: Fixed antenna gasket +gasket
4 x Foot pad
2 x Speaker
2 x Speaker outlet
1 x DAB+/FM Radio Antenna
1 x AC/DC Power Supply (YN‐24WA050350EU)
1 x Operation Manual
1 x Installation Manual
1 x Kraft box for packing



If you like Do it yourself project. Congratulation, this small project is right one for the hoppy time and as a gift for you or the friends or another family members!<br>

About This Item
*Large 2.4 inch display for easy control and clear information display, with up to sixlines of text plus
*FM with RDS (Radio Data System), support bluetooth speaker function
*DAB/FM can store 10 channels separately
*Aux in for external music sources such as MP3 players
*Speaker output, USB Port (Front) : Mp3 music format

Preparation For Use
Unplug the product when not in use for a long period of time.
If the power cable is damaged, it must be replaced by the manufacturer or qualified service personnel to avoid danger.

Please Note: This item is suitable for whom are over 12 years old. The stuffing in the packaging is not allowed to be used as toys for children or pets.
